Angle Measurement Tool

Why choose S-BAM bending angle measurement device?

In the actual production process, when machining sheet metal parts with high precision requirements, it is often encountered that the thickness of the sheet metal and the existing stress are different, resulting in changes in the angle,

such as:

• Inconsistent plate thickness

• Different rebound performance

• Change of oxide layer or rolling line on the plate surface

• Changes in mechanical properties of materials in different batches or the same batch

In order to solve the above problems and help users complete mass production tasks with high quality, we have developed a solution dedicated to detecting bending angles and automatically correcting them, namely S-BAM

Measurement accuracy

The accuracy error of the sensor is within ± 0.1 °.

However, it is affected by the working conditions, especially the mold and sheet batch. Generally, the bending accuracy can meet ± 0.3 °

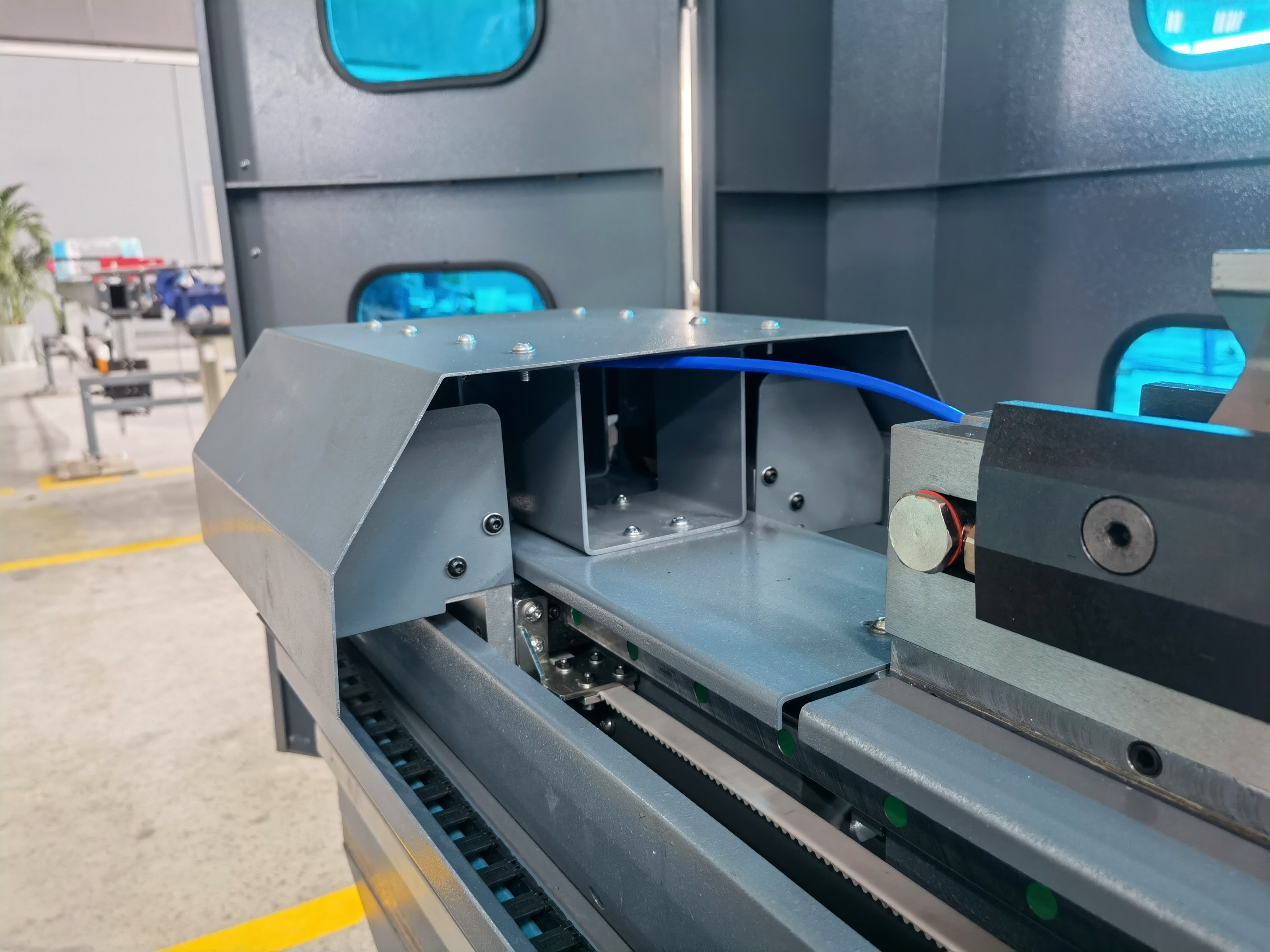

Parking position

The parking position will protect the bending angle measurement device when it's no need to working.

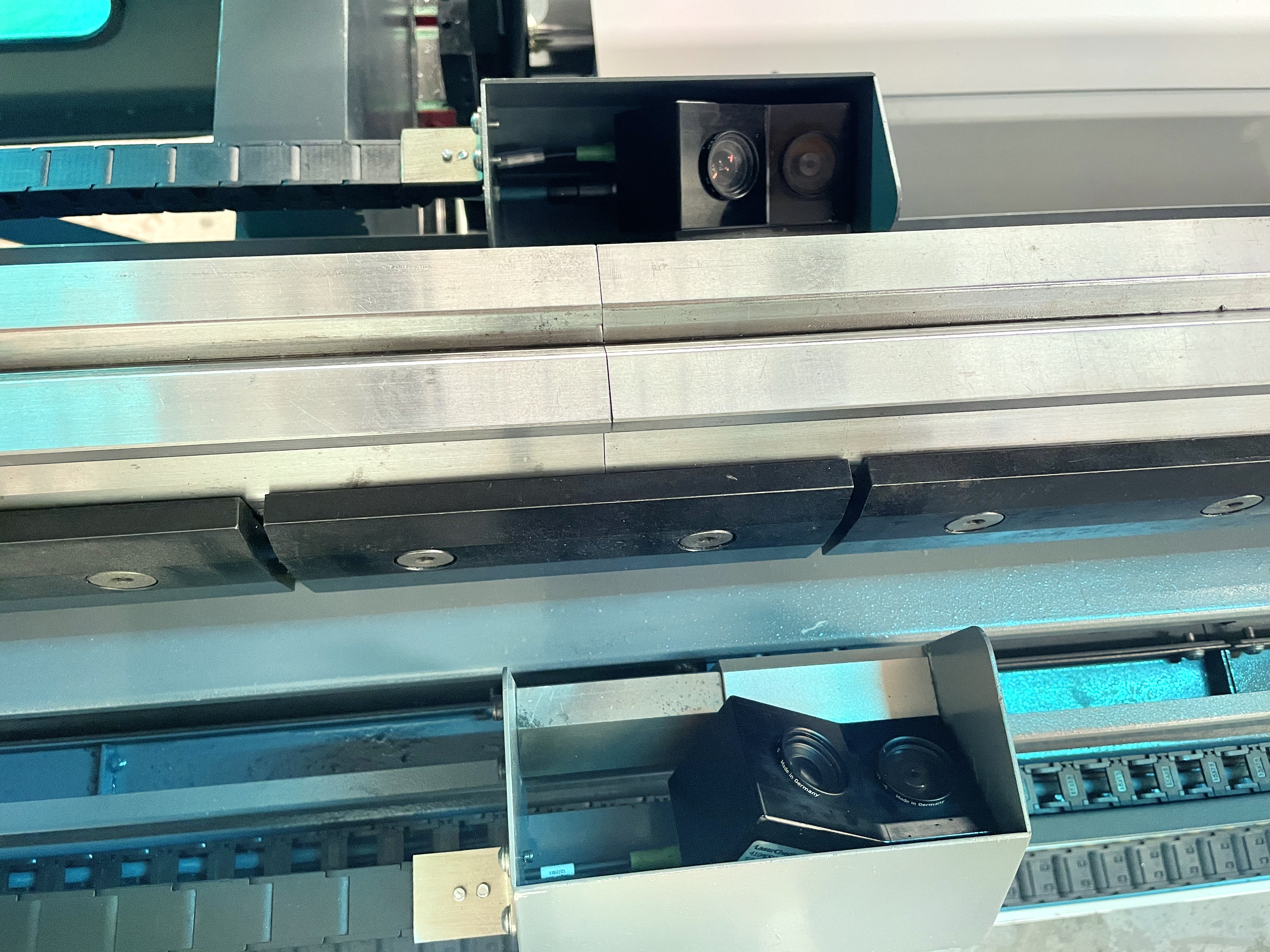

1 pair device

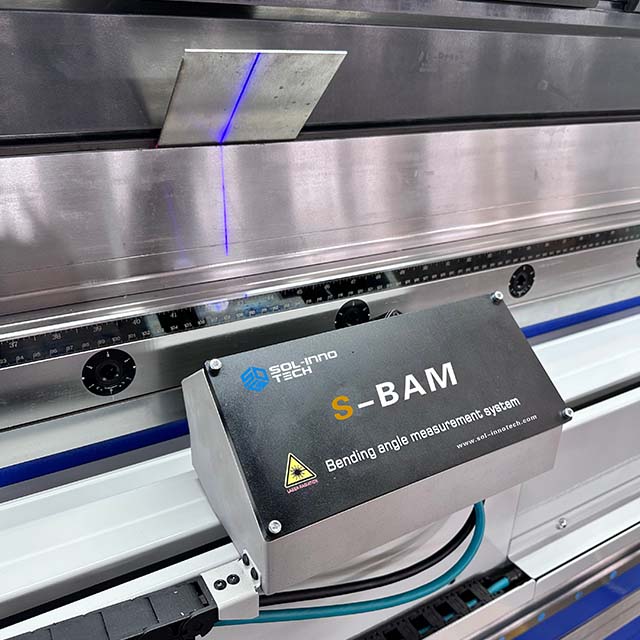

Non contact type with laser checking.
