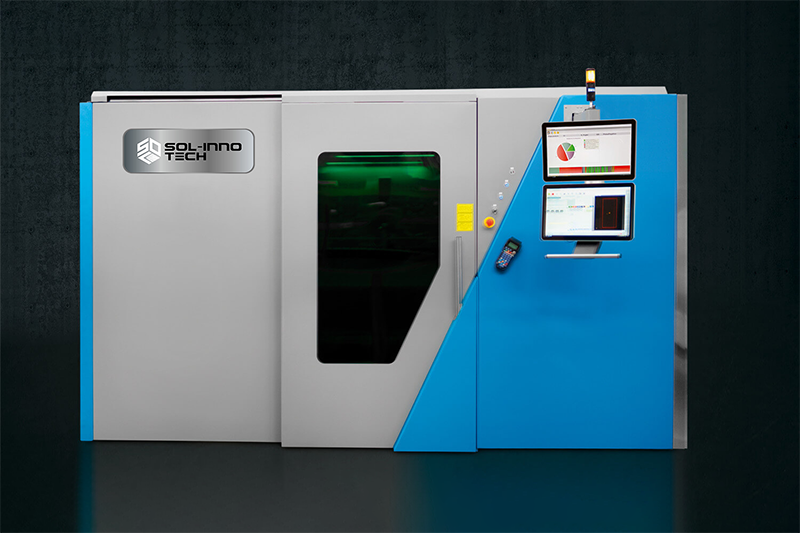

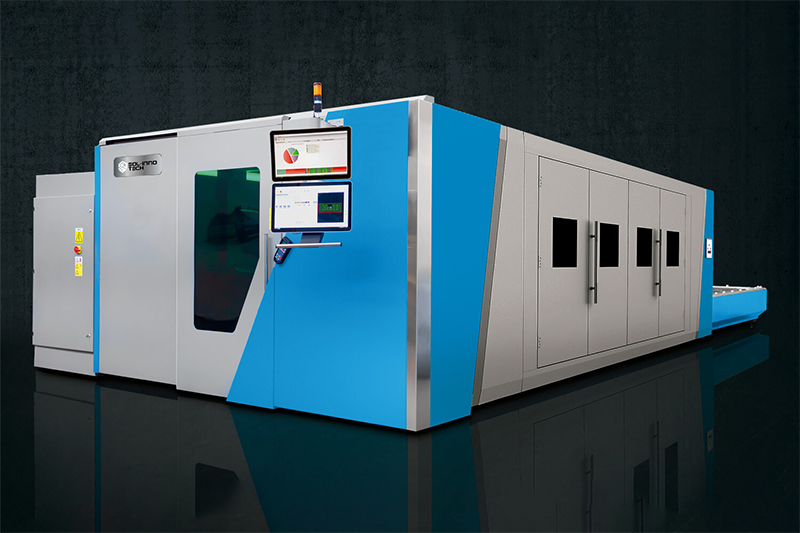

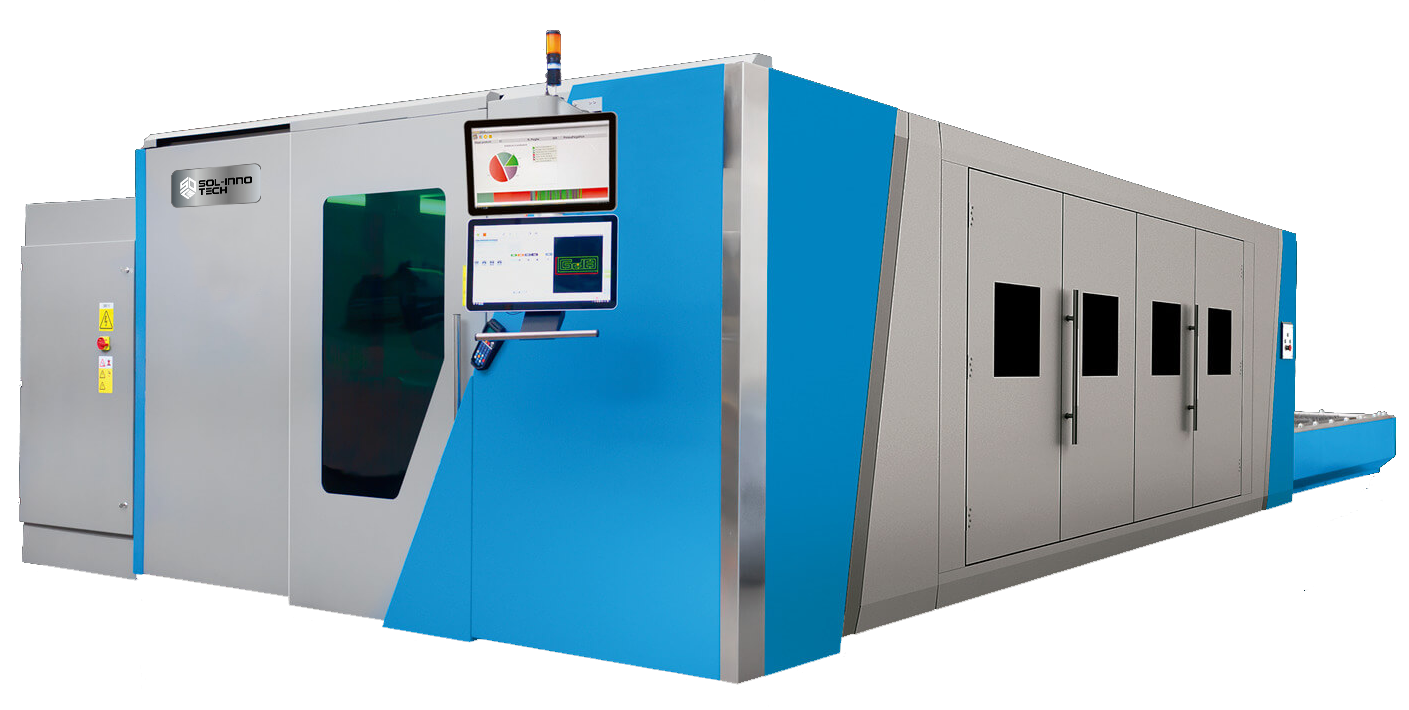

Fiber Laser Cutting Machine SOL F series
Product overview

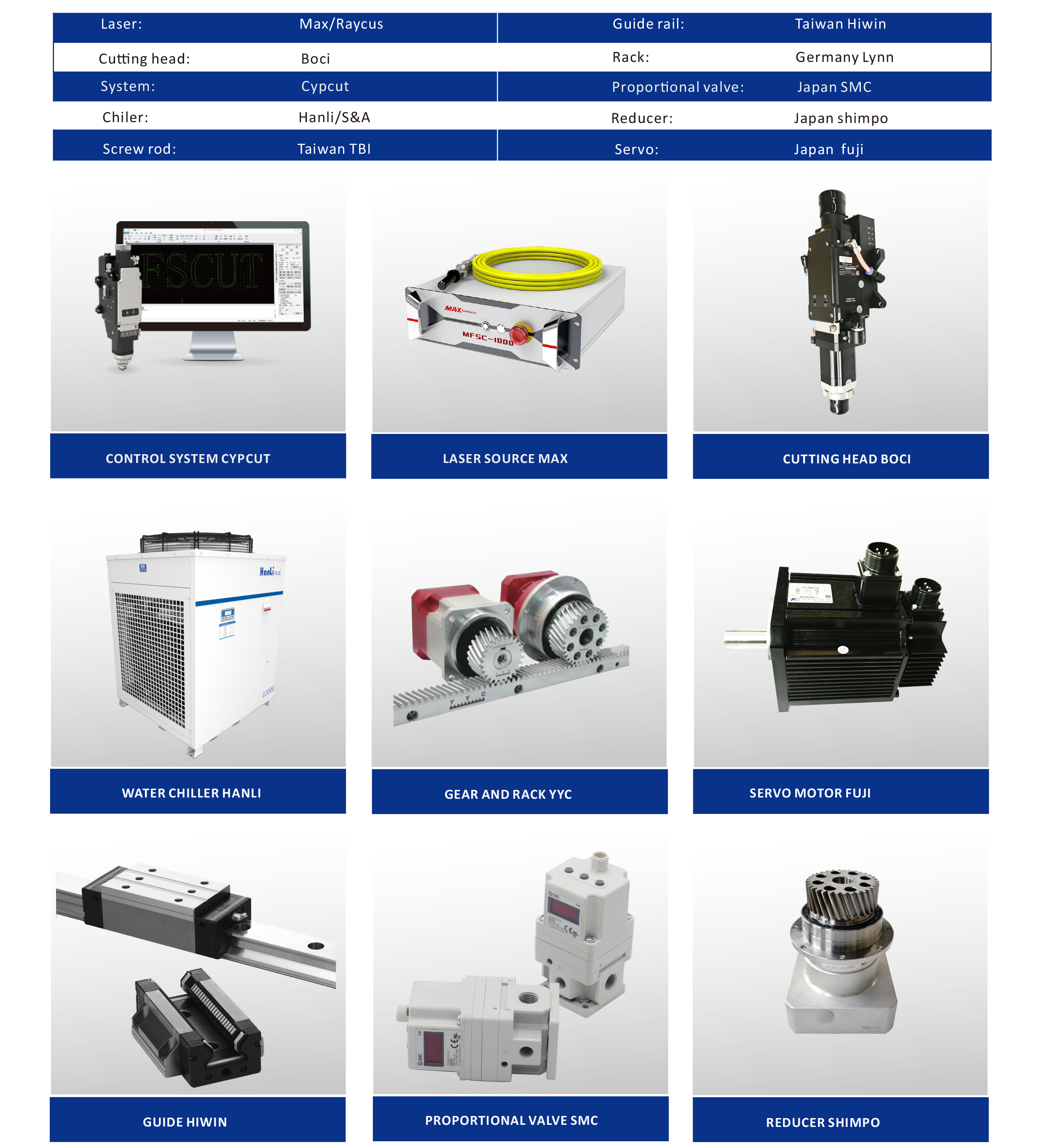

Core configuration

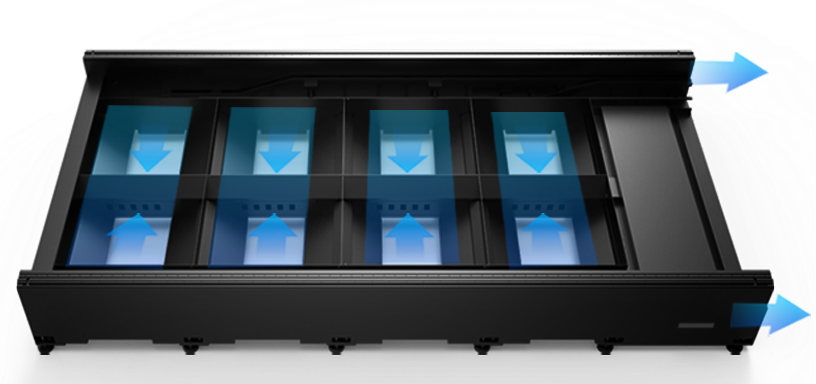

Follow- type Dedusting system
Centralize duct structure, the air vent is close to the cutting area for excellent dust extraction.
Flip-up air vent flap design prevents blockage of the air vent.
Segmented vent open and close follows as the cross beam moves.

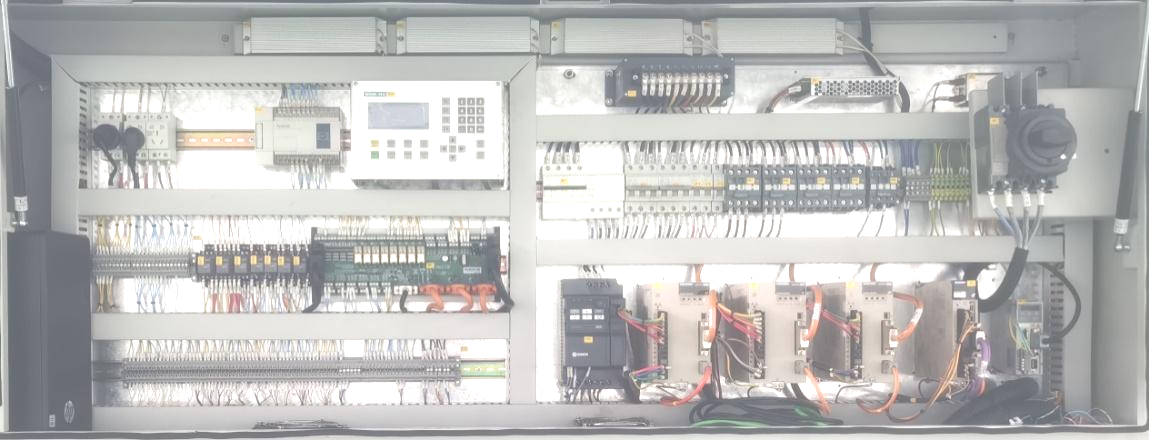

Electric Cabint
Use Tongfei brand air conditioner to ensure constant temperature and humidity inside the electric cabinet, and there is no worry about the long-term operation of electronic components;
Features:
The circuit layout is scientific and regular;
Large circuit spacing, strong and weak current separation and anti signal interference;
World’s famous brand Schneider electronic components and Phoenix Contact terminals are used in the whole system;
High pressure-bearing voltage transformer provides double guarantee for circuit components except voltage regulator.
Inspection and Assembly
DURING ASSEMBLY

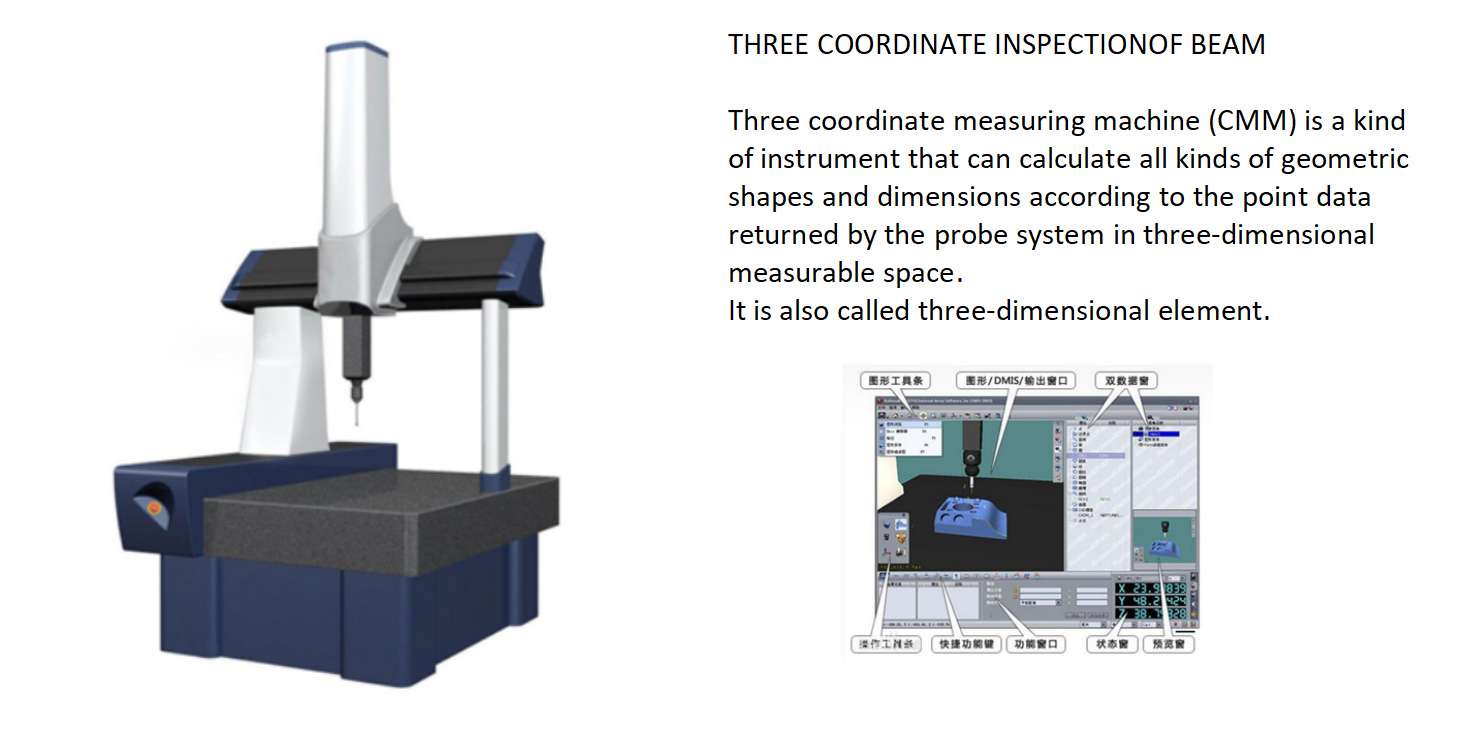

Check whether the beam machining form and position tolerance is within the design scope toensure the equipment quality.

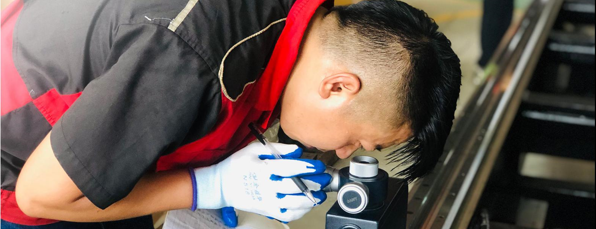

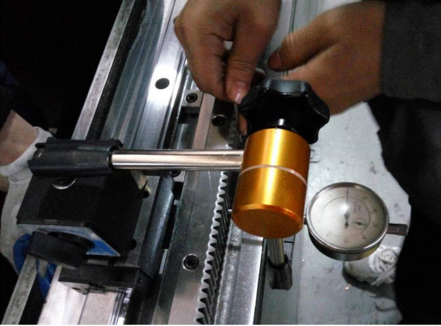

The bed beam collimator detects the guide rail surface - measures the straightness of the guiderail to ensure the accuracy of each equipment.
ASSEMBLY COMPLETION DETECTION

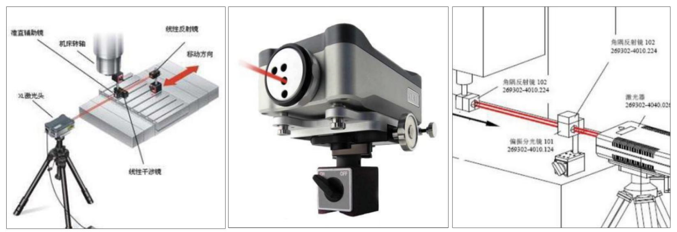

Laser interferometer-It has such advantages as high measurement accuracy and speed, etc. Interferometer, mainly laser as light source, constitutes a measuring system with interference A laser interferometer with various refractive mirror to the linear position, speed, angle, flatness, straightness, parallelism and perpendicularity measurement work, and can be used as calibration of precision machine tool or measuring instrument.
