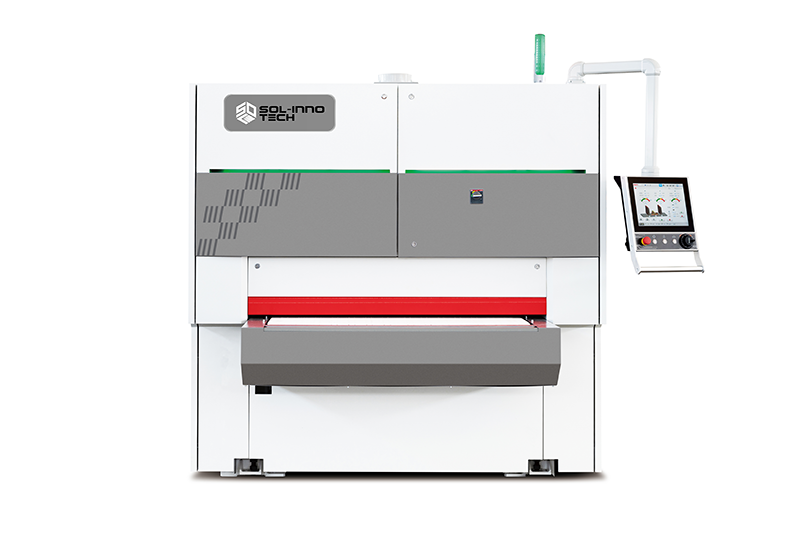

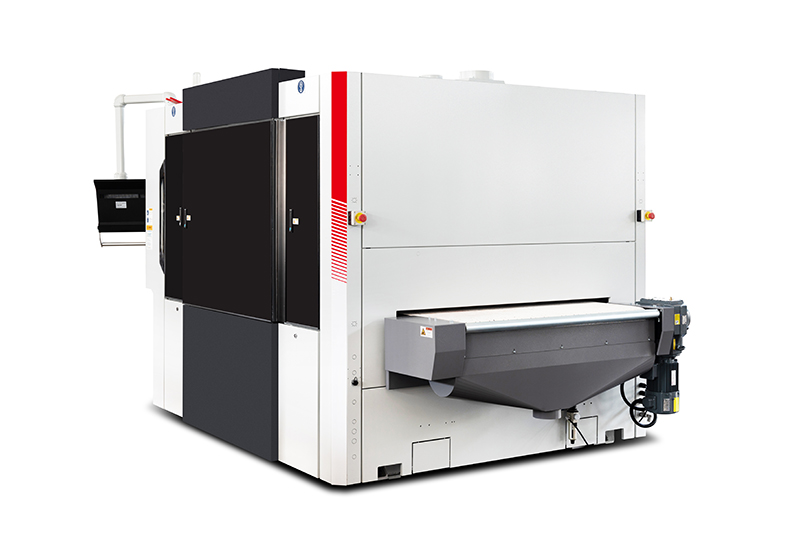

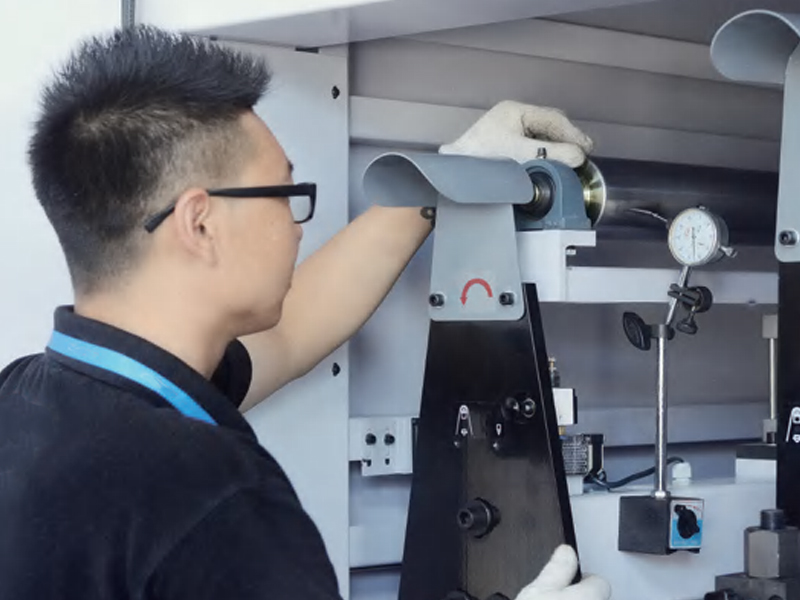

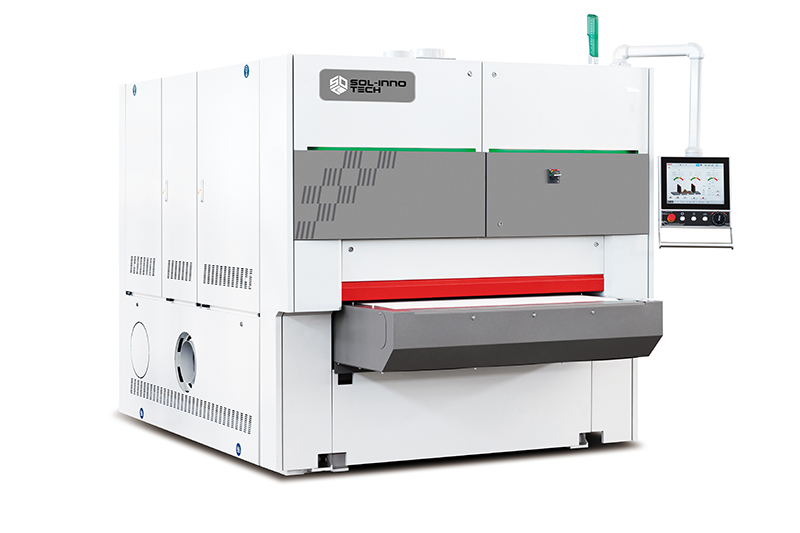

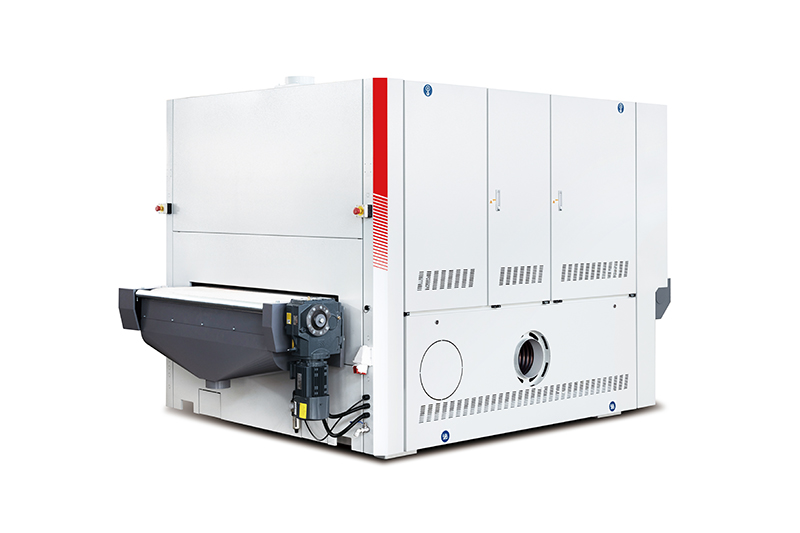

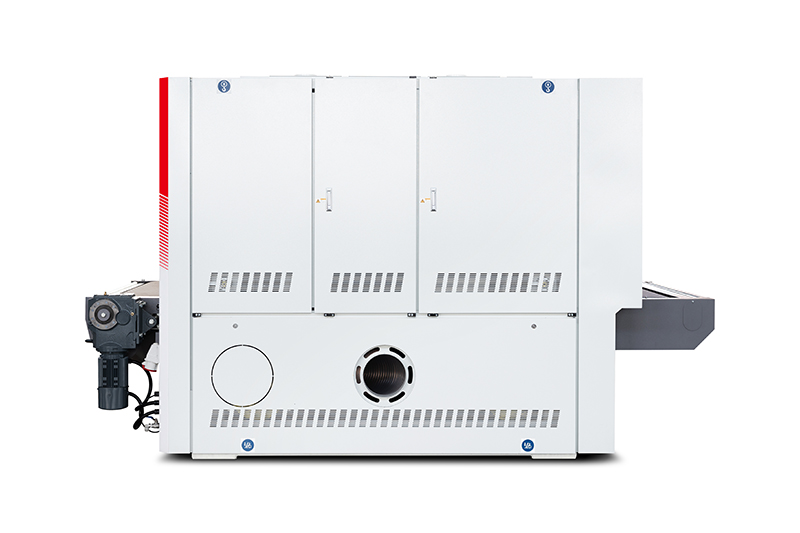

Grinding Machine SOL RD1300

ADVANTAGES

• Integrating a variety of processing capabilities: from chamfering, deburring to surface fine grinding.

• One machine for multiple purposes: deburring, Chamfering, brushed finishing and drawing of stainless steel, aluminum, copper and other non-ferrous metals.

• Carbon steel slag removal, deburring, and chamfering.

• Processing at normal temperature will not increase the processing temperature of the workpiece.

• Can be integrated into automated production lines or unmanned production workshops.

TECHNICAL PARAMETER

SOL RD 1300
Working width (mm)	1300mm
Working thickness (mm)	0.5-150mm
Feeding speed (m/min)	0.5-7.5m/min
Total power(Kw) (with vacuum)	43Kw
Hardness of roller	80sh
Diameter of roller	φ190mm
Pieces of 2nd unit	7 pieces
Diameter of disc	φ180mm
Size of sandpaper	1350x2620mm
Grit of sandpaper	80#
Working air pressure	0.6Mpa
Air consumption	≥40m³/h
Volume of dust collection device	3900m³/h
Protection Grade	IP54
Machine Weight	3600KG
Dimension （L×W×H）	2220*2710*2470-2620mm
Working table height from ground	900mm
Voltage	380V/50Hz/3phases
Dust cleaning for conveyor belt	YES
Pneumatic lifting for roller	YES
CE Standard	YES
*Motor of vacuum 11Kw (optional)	Chinese brand or German brand
*filter(optional)	Dry or Wet filter

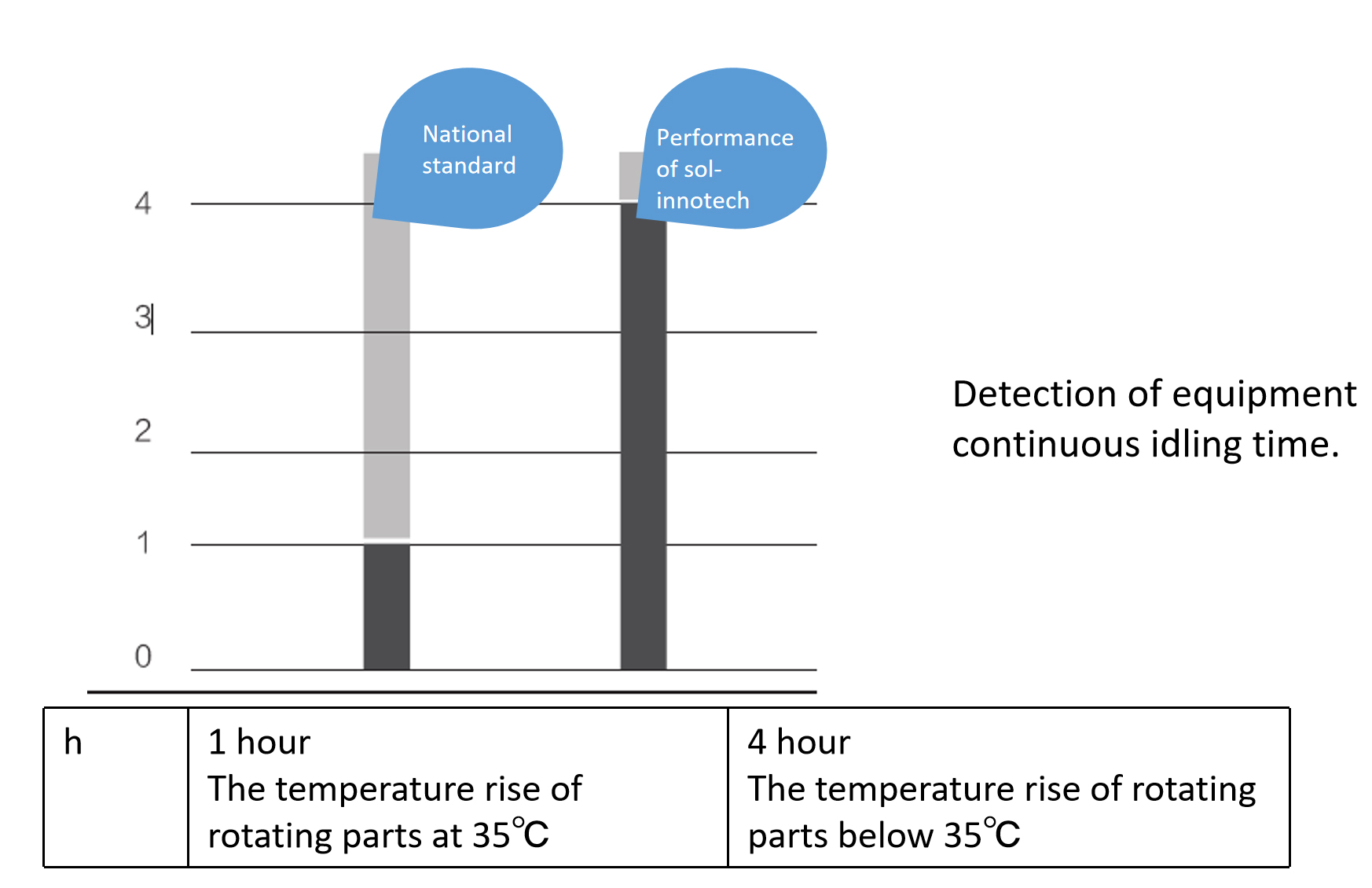

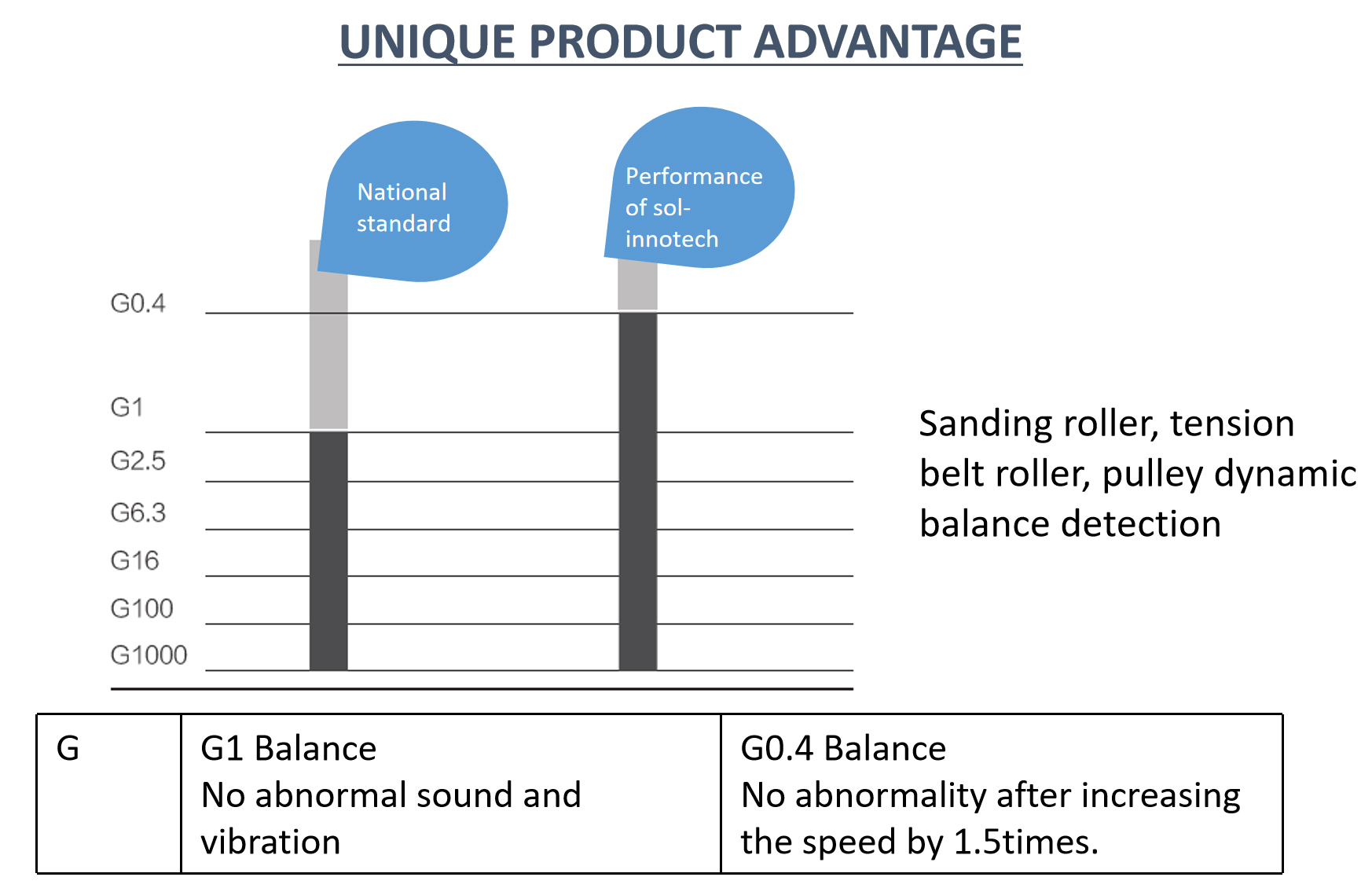

CUSTOMER BENEFITS

GRINDING SAMPLES

• Excellent performance: 300 square meters of grinding per hour.

• Integrating a variety of processing capabilities: from large corner processing to fine surface grinding.

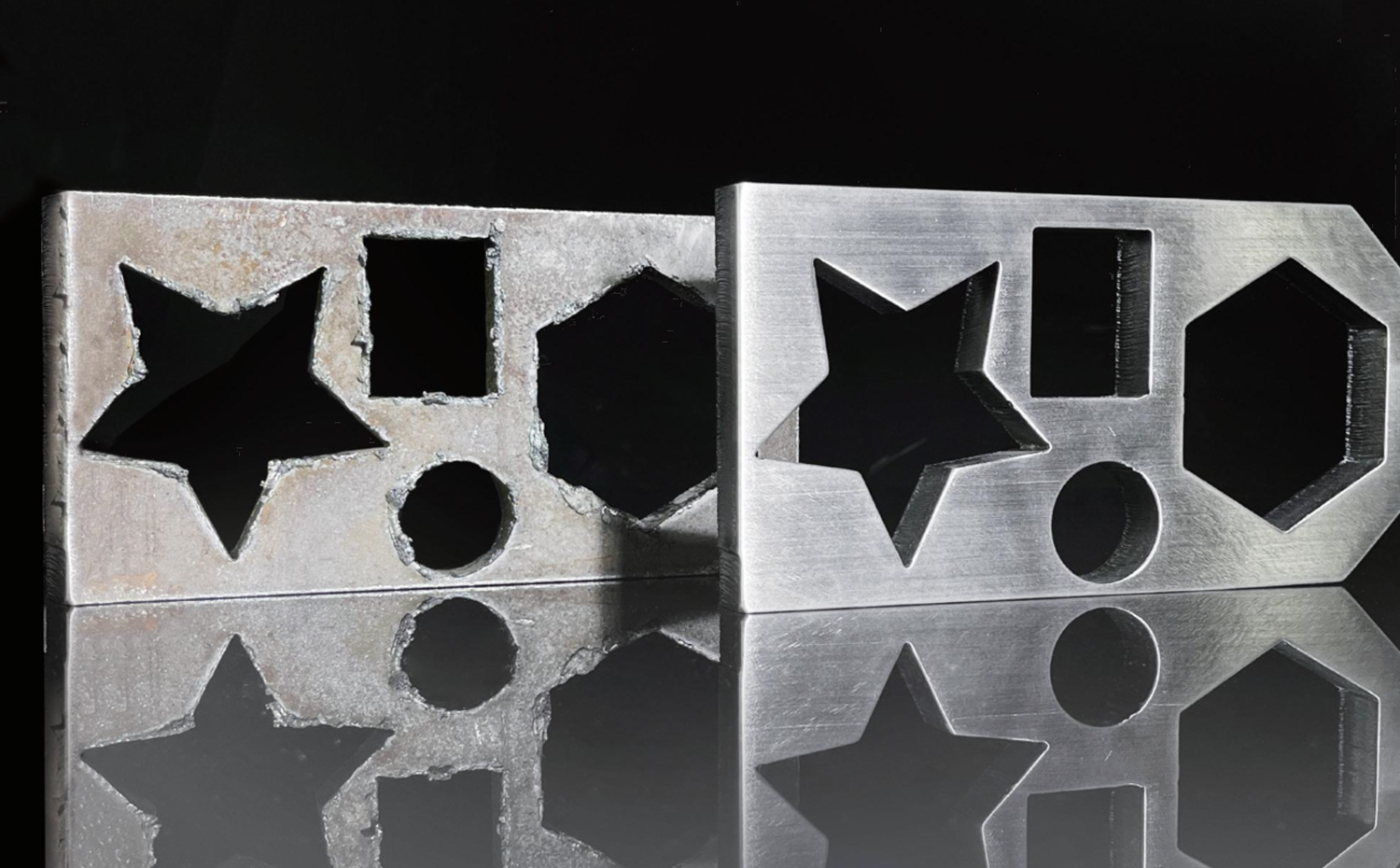

• The surface treatment effect of uniform rounded corners and multi-rotational lines is attributed to the unique grinding method of the grinding head.

• Deburring，drawing and chamfering of various materials.

• Unique body structure design makes operation and maintenance simple and easy.

• Can be integrated into automated assembly lines or unmanned production workshops.

PRODUCT CONFIGURATION

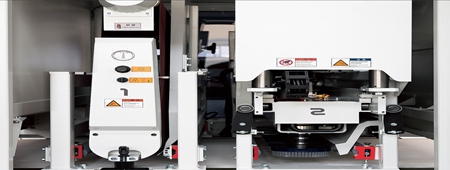

	1. Integrated modular design The sanding units can be replaced and freely combined.Each unit can be individually controlled for lifting, enabling it to adapt to a wider variety of working conditions.

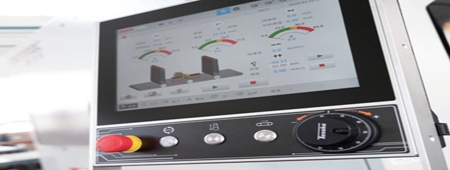

	2. 15 inch intelligent touch scree 1.Easy access to historical data and one-click parameter switching; 2. Fault alarm. It shows the location of the error on the mechanical drawing. 3. Advance  warning of consumable replacement and maintenance for bearings and reducers to avoid downtime.

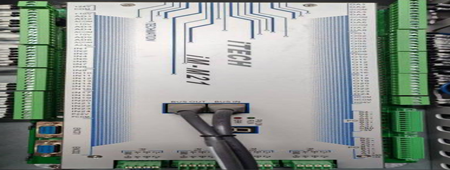

	3. CNC industrial control modul It is adopted to replace the traditional PLC, endowing the system with digital capabilities and enabling intelligent control of each sanding unit.

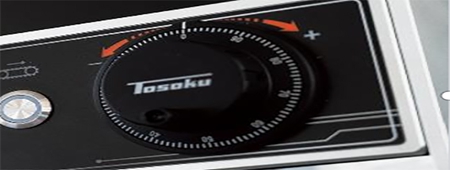

	4. Hand Cranked Pulse Generator Adjust the thickness unit to 0.01mm.By adjusting different magnifications, the processing removal amount can be quickly adjusted. Replaced the original mechanical hand wheel, making operation more convenient.

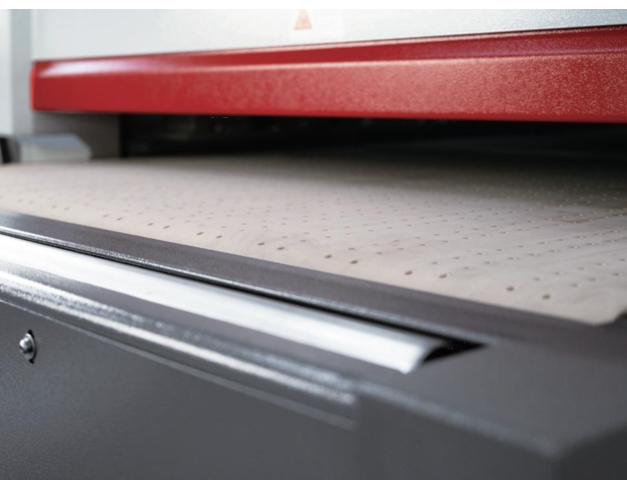

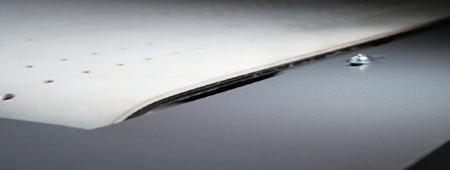

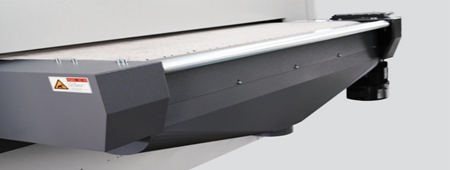

	5. Rubber conveyor belt It is high-temperature resistance and wear resistance, which greatly enhances the adhesion force and service life. *Vacuum adsorption

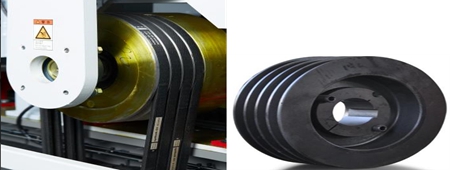

	6. Transmission belt It adopts German brand OPTIBELT. The pulley installation adopts a cone sleeve tensioning structure to avoid damage to the motor or roller during installation and is easy to maintain.

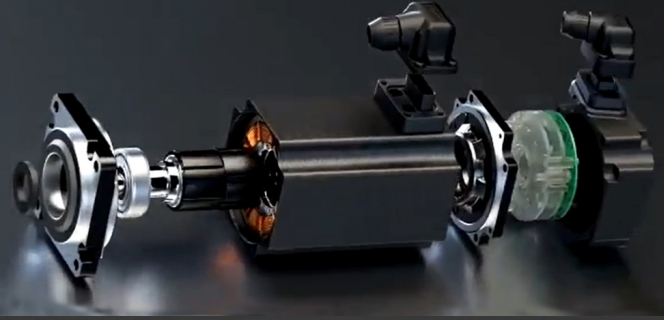

	7. high-performance servo motor The maximum speed can reach 1800rpm, providing a torque of 122 Newton meters. Being able to adjust power output in real-time based on actual load, thereby reducing energy loss by 30%.
	8. MCS cleaning system The dust removal system optimized by professional calculation and CAE analysis ensures more than 99% efficient dust removal.
	9. MBS processing positioning system Servo motor drive control, repeatable positioning accuracy is 0.015mm,long-lasting accuracy.

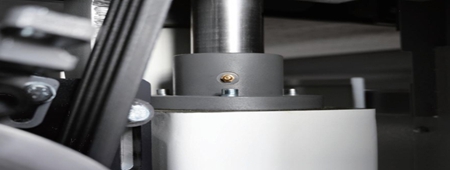

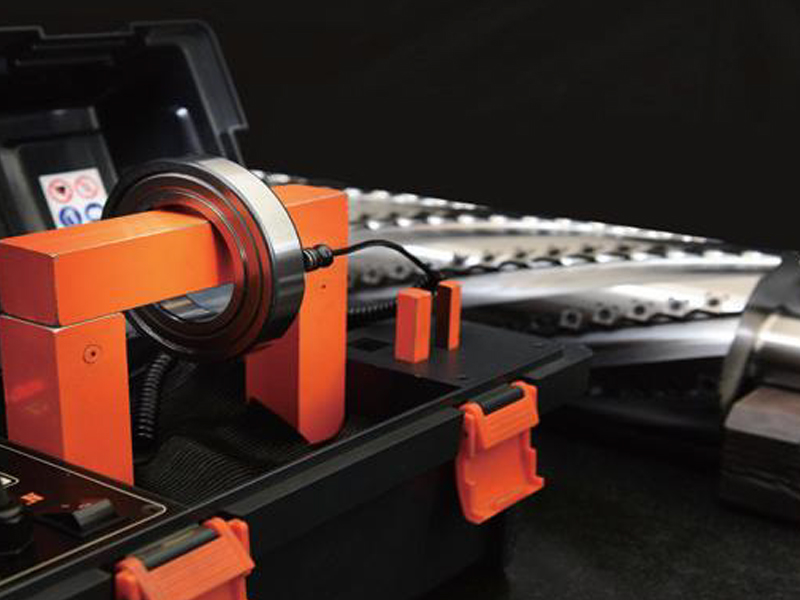

	10.Bushing Device It uses advanced electrification technology to achieve excellent grinding results. The maximum speed is 2200rpm,ensuring efficient operation of the abrasive belt and redefining the performance standards of wide-belt grinding machine.

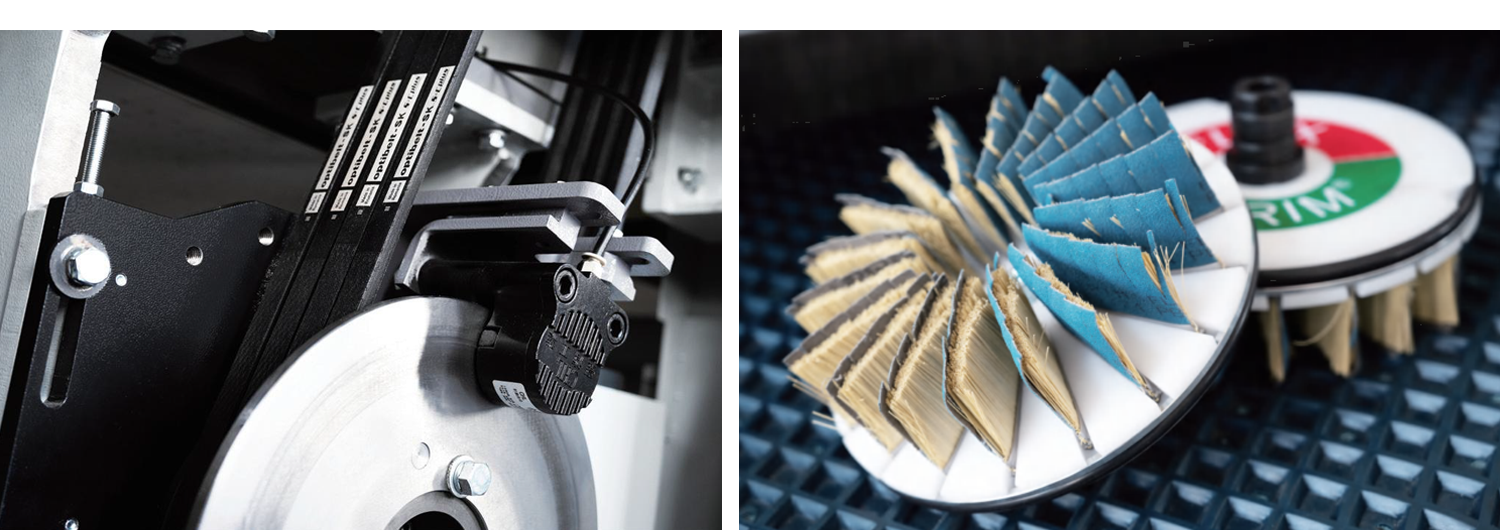

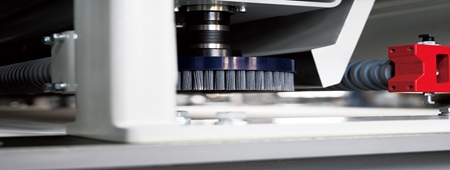

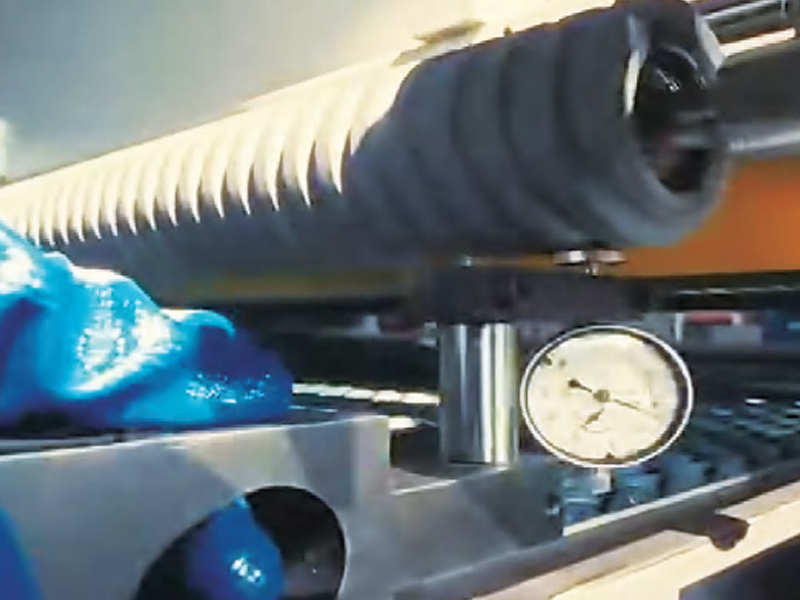

Disc and brush rollers (Italy brand)

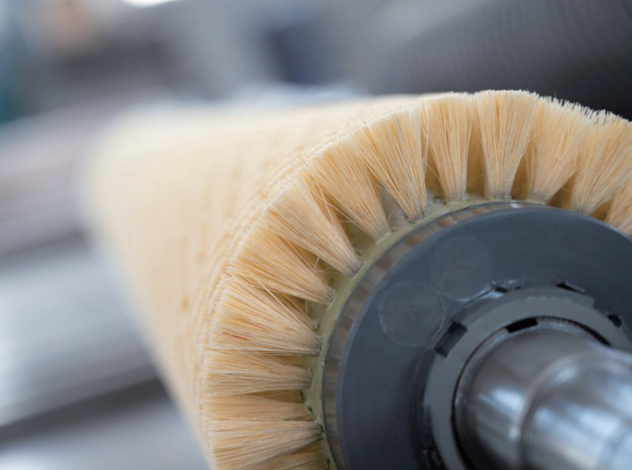

The disc, brush rollers use the European abrasive brand(Flex Trim)with more than 30 years to ensure high precision, strong wear resistance and easy replacement.

11.Rubber conveyor belt (Italy brand)

The super durable rubber conveyor belt imported from Italy has excellent tensile resistance, wear resistance and spark resistance properties, as well as an ultra-thick design and strong adhesion. It has excellent high temperature resistance  and its service life far exceeds industry standards.

The conveyor belt has the active cleaning mechanism, it can ensure the cleanliness at any time and extend the service life of the conveyor belt and improve product quality. Rotating brusher

COST-SAVING

The spindle motor adopts servo drive. Energy saving of 20%-30%.

The transmission power system adopts frequency conversion technology.

The transmission efficiency has been improved by 24% and energy saving has been achieved by 31%.Compared to similar products.

Using imported rubber conveyor belts, the usage time is about 3200 hours longer than similar products, reducing downtime and belt replacement by more than 4 times.
