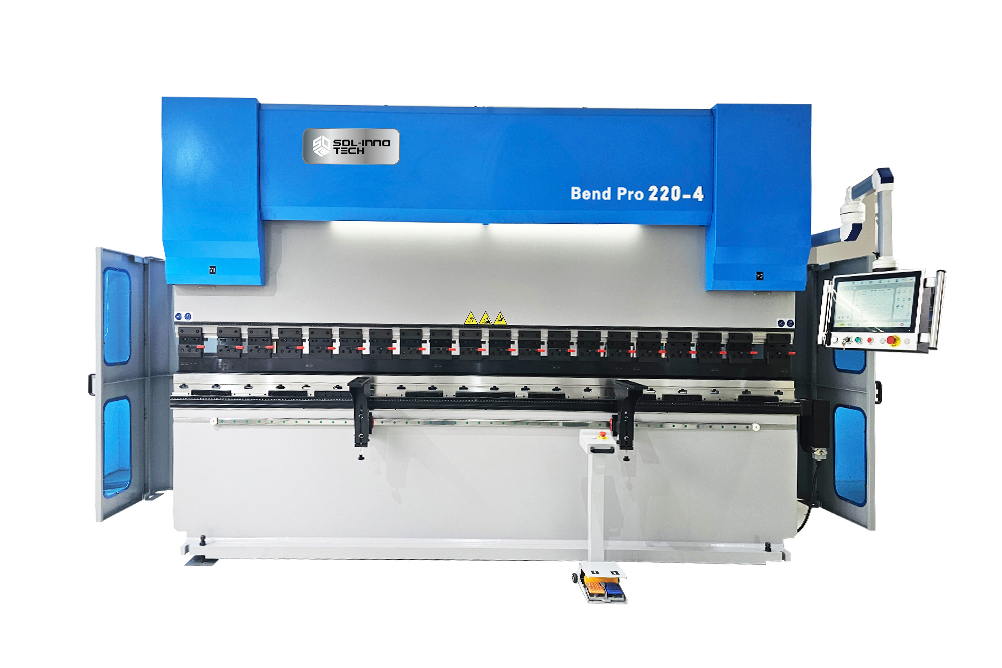

Press Brake SOL Bend Pro series
Complete with standard configuration:
CNC control mod. ESA 640
4+1 axes: Y1-Y2-X-R+C
Mechanical crowing system: B-CM
Back gauge type:GHP-2(X-R axes)
Main motor: Servo
Hydraulic system: HAWE
MAIN CONFIGURATION

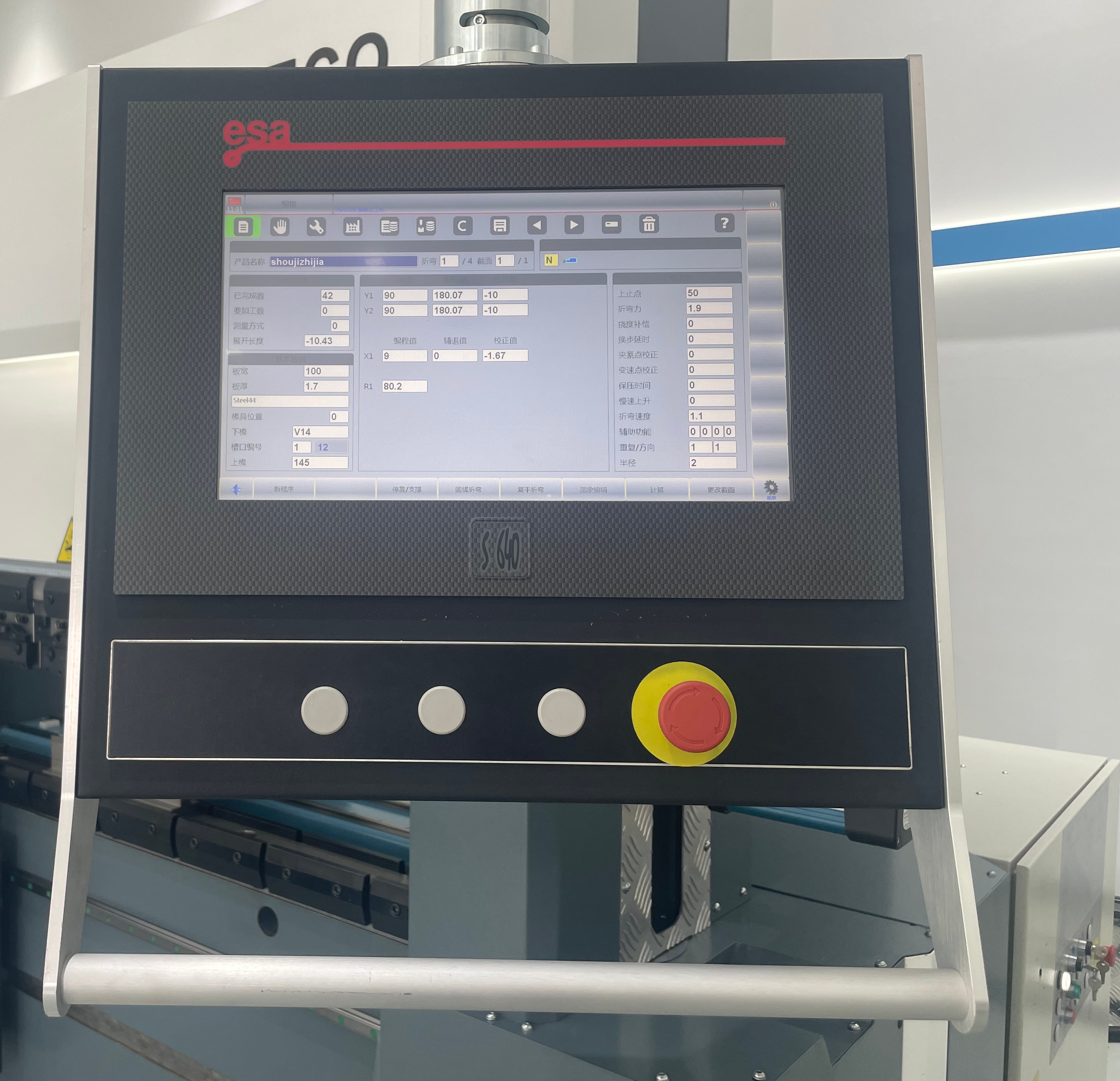

| CNC system-ESA 640 The new Esautomation CNC range is designed to meet demands for an increasing number of users for a performance-oriented, user-friendly CNC with up-to-the-minute functions and styling. |

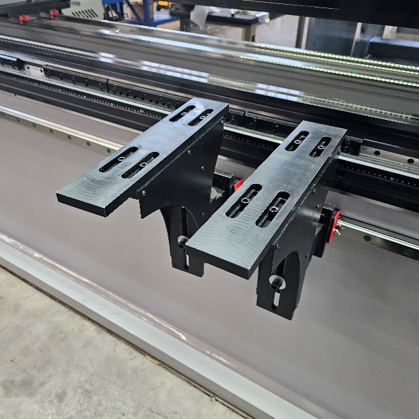

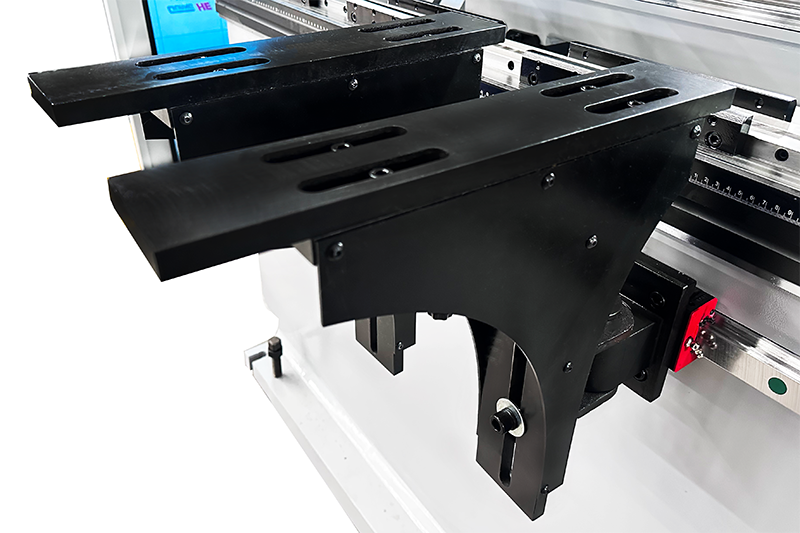

 | Manual sliding front support arms The front support arms working position can be manually adjusted in the X and Z axis directions. The height of the front support table can be manually adjusted according to the height of the lower mold used on the machine tool. The length of the front support table is 460mm, and the Max. load-bearing capacity is 100kg/piece |

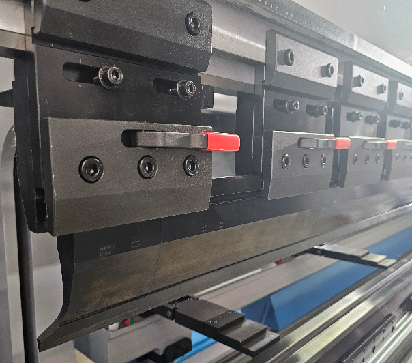

 | Manual top tool clamping mod G-TM Standard intermediate clamp with quick release lever for fast tool change. Suitable for vertical loading/unloading of tools. No need to slide the tools laterally. |

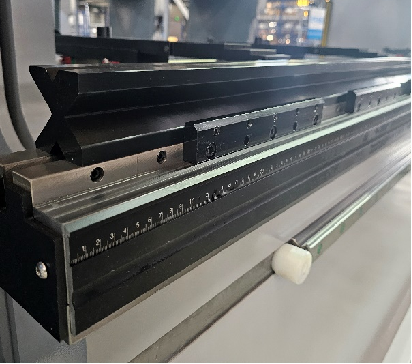

 | Manual bottom tool clamping mod. G-BM Self-centering type. Available for 60-90 mm dies. |

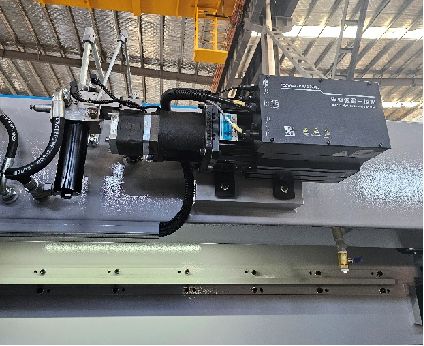

 | Mechanical crowning system The unidirectional mechanical deflection compensation mechanism adopts a unique specially processed wedge block. Each set of wedge blocks is designed according to the deflection of the upper and lower beam. The CNC calculates the required compensation amount according to the load force when the workpiece is bent, and automatically controls the relative movement of the wedge block to effectively compensate for deflection. The mechanical compensation system, as well as the hydraulic one, is certainly a great help for the operator during bending operation; it is reliable, precise and is not subject to any oil leakage. |

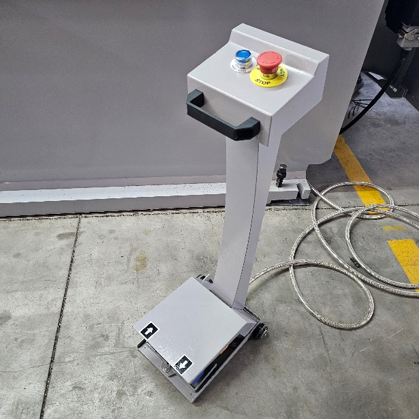

 | Foot pedal Our foot pedal is in accordance to CE safety requirements; its features are as follows: 1.Double safety switch which allows machine descent only if foot is totally inside the pedal; 2.3-position safety design 3.With shielded snake skin hose cable . 4.Can be upgraded to wireless foot switch |

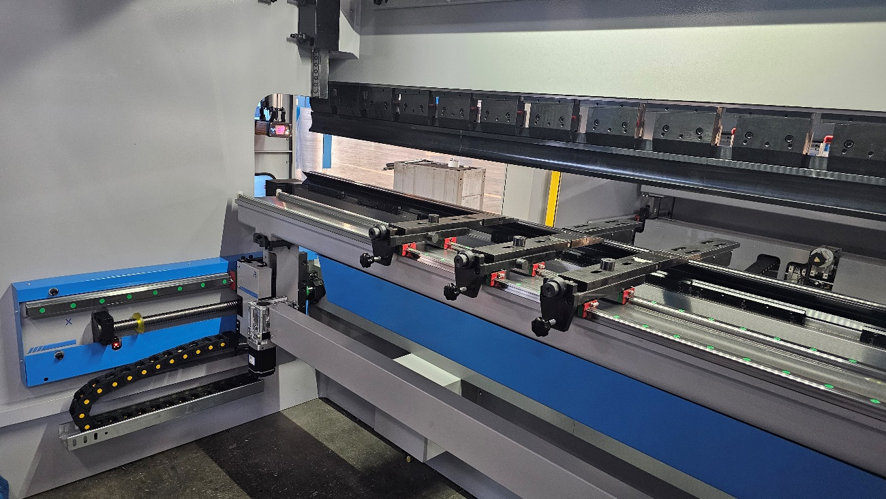

 | Back gauge system The back gauge system is one of the important part of the press brake as a guarantee of dimensional accuracy of the bending workpiece. The 2 axes (X-R) back gauge of the standard GHB-X series ensures the most flexible and high synchronization accuracy. It have a very long service life and positioning of almost all complex bending workpieces,.Thanks to the guide design which foresees the use of double sliders to ensure the accuracy. The X-R axes motion is controlled by a double gear reducer system which is considered a “smart” design and has allowed to make a more compact version. |

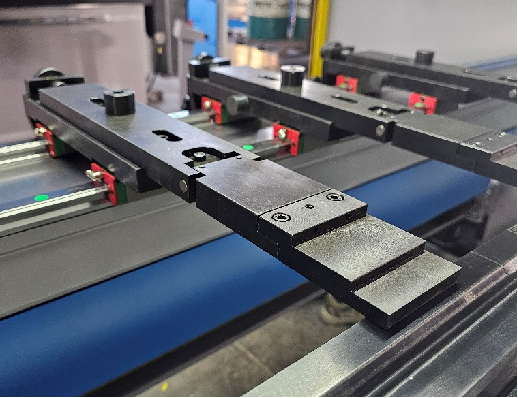

 | The rear fingers have below design features: The finger top can be replaced in case of wear out; this is a solution economically convenient for customers who do not need to replace the entire finger. |

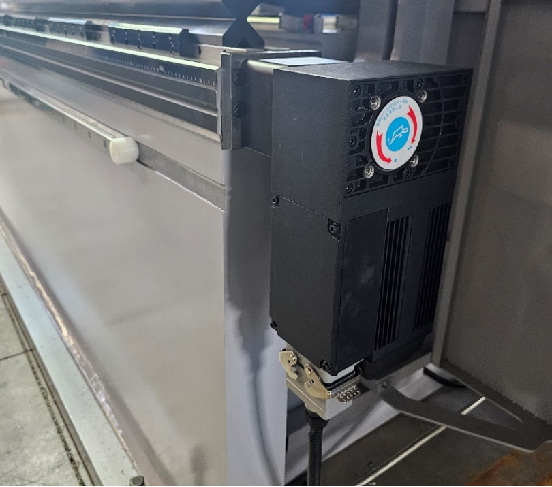

 | The motor offer excellent acceleration and are ideally suited for high speed and precision press brakes: high feed smoothness Large torque range High maximum speed High-resolution encoder Benefits: High energy savings. Longer service life for pump, oil filter and all related components. High travel speed in the downward and backward movement. |

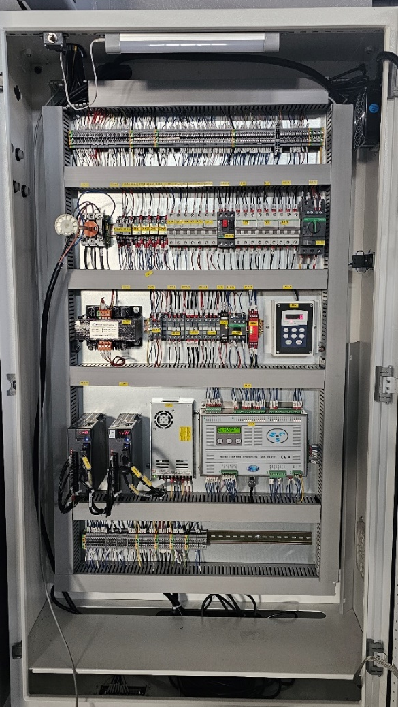

| The entire electrical system of the press brake automation unit is made up of the CNC system, the control cabinet, the foot pedal, the movable servo control panel (drive and motor) and the main motor. Its main features:
|
