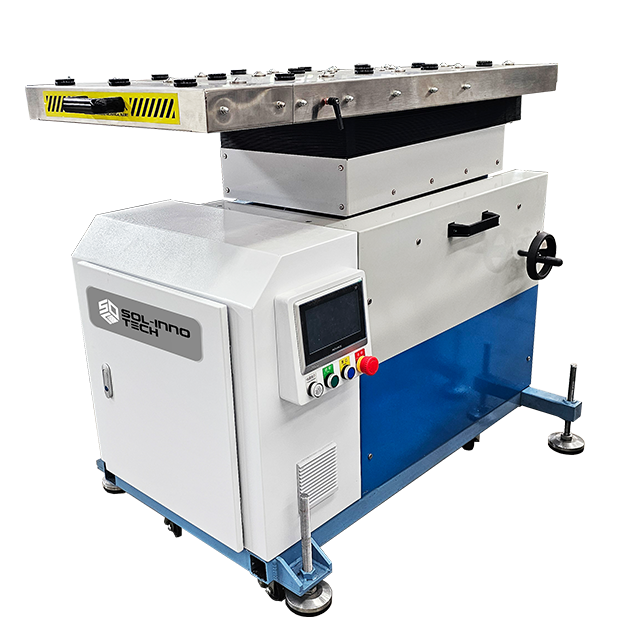

Sheet follower SF 200
Advantage:
Suitable for bending oflarger sheet metal,reducinglabor costs.
Improve processing efficiency and ensure the accuracy of the bending angle.
Accurately read Y-axis moving displacement data, Optical scale data, and keep 100% synchronization with y-axis.
Independent control system, it is convenient to write, store and record
Suitable for matching with lt can be matched with different brands of press brakes.
According to the size of the die and the V port, it can be adjusted to move up, down, forward and backward
Equipped with a brush worktable to prevent the sheet metal from being scratched, slipped or dropped
Flexible and easy to use, easy to install and unload, realize one machine for sharing mode to multiple press brakes
It no need to add the Grating rules or magnetic rules and encoder.
